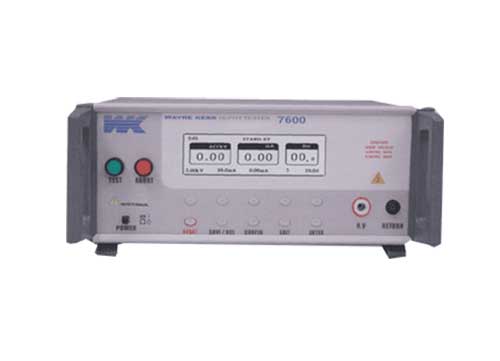

HT7600安規測試儀
產品詳情
?可設定連續測試步驟
?內建PLC Remote 可程序遙控接口
?三種測試功能可供選擇
?繪圖型LCD窗口
?內建RS-232可與計算機聯機
|
AC Withstand |
||||
|
Item |
Range |
Resolution |
Accuracy |
|
|
輸出電壓 |
100V ~ 5000V |
10 |
±(3% of setting+5V) |
|
|
輸出頻率 |
50/60Hz |
|
±100ppm |
|
|
上限判斷值 mA |
0.001 ~ 10 |
0.001 |
±3% |
|
|
下限判斷值 mA |
0 ~ 9.999 |
0.001 |
±3% |
|
|
測試時間 |
0.1 ~ 99.9s |
0.1 |
|
|
|
上升時間 |
0.1 ~ 99.9s |
0.1 |
|
|
|
電弧偵測 |
1 ~ 9 |
|
|
|
|
DC Withstand |
||||
|
Item |
Range |
Resolution |
Accuracy |
|
|
輸出電壓 |
100V ~ 6000V |
10 |
±(3% of setting+5V) |
|
|
上限判斷值 mA |
0.001 ~ 5 |
0.001 |
±3% |
|
|
下限判斷值 mA |
0 ~ 4.999 |
0.001 |
±3% |
|
|
測試時間 |
0.1 ~ 99.9s |
0.1 |
|
|
|
上升時間 |
0.1 ~ 99.9s |
0.1 |
|
|
|
電弧偵測 |
1~9 |
|
|
|
|
Insulation Resistance |
||||
|
Item |
Range |
Resolution |
Accuracy |
|
|
輸出電壓 |
100 ~ 1000Vdc |
10 |
±(3% of setting+5V) |
|
|
測試時間 |
0.1 ~ 9.99s |
0.1 |
|
|
|
上升時間 |
||||
|
上限判斷值 MΩ |
1 ~ 9999 |
1 |
100 ~ 500V, 1 ~ 1000MΩ (±5%) |
|
|
下限判斷值 MΩ |
0 ~ 9998 |
1 |
||
|
General |
||||
|
Item |
Range |
|||
|
內存 |
30 Sets |
|||
|
PLC Remote Control |
Test, Abort |
|||
|
PLC Single Output |
Pass, Fail, HV output |
|||
|
LCD 顯示器 |
128*64 graphic LCD |
|||
|
測試項目 |
AC, DC, IR |
|||
|
外觀及重量 |
435(W)*180(H)*455(D)mm, 15kgs |
|||
|
操作溫濕度 |
5 ~ 40ºC, RH 0 ~ 80% |
|||
|
輸入電源 |
115/230Vac ± 15%, 50/60Hz ± 5% |
|||
|
測試點數 |
7600 |
2 channels |
||
|
7620 |
8 channels |
|||
|
7621 |
8 channels |
|||
